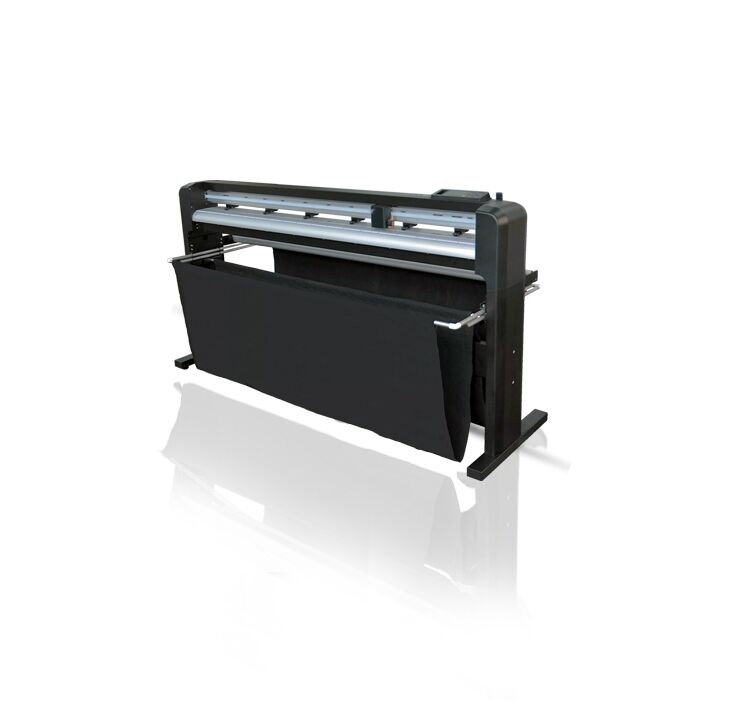

GraphiCut-Pro GRC-180 Professional ARMS/CCD Camera Cutter Plotters for Cutting Printed Materials

  • Specialized for cutting Printed material with fully automatic CCD crop marks sensor
  • Max Cutting Force: 600g
  • Contour: Fully automatic GARMS Cutting
  • Feature: pause-resume & XY movement during cutting
  • Cutting Area: 64 inches
  • Media Loading: 70 inches
  • Drive Control: Servo Motors
  • CPU: 64bit-DSP
  • Motor Speed: 3000RPM
  • Voltage: AC 110V/50-60HZ
Category:

Description

Model GRC-180 GRC-160
Drive system
Cutting mechanism		 Digital control servo motor
Media-moving method
Acceptable material size
Width: Max. 70 in. (1,782 mm)
Min. 2 in. (50 mm)		 Max. 62 in. (1,594 mm)
Min. 2 in. (50 mm)
Thickness: Thickness including backing paper is 0.1 mm max
Roll weight: 24 kg 24 kg
Maximum cutting area Width: 64 in. (1,627 mm)
Length: 1,968 in. (50 m)		 Width: 54 in. (1,372 mm)
Length: 1,968 in. (50 m)
Tools Tool 1
Maximum cutting speed 800 mm/s
Cutting force 10 – 600 gf
Mechanical resolution 0.127 mil./step
Software resolution 0.025 mm/step
Distance accuracy Error of less than ±0.1% of distance traveled or 0.254 mm (10 mil.), whichever is greater
Repeatability 0.1 mm or less
Connectivity USB 2.0 & RS-232C
Buffer Memory 32 MB
Command system HP-GL, HP-GL/2 compliant
Power requirements AC 110 V ± 10%, 50/60 Hz
Power consumption Approx. 150 W
Acoustic noise level During operation 56 dB (A) or less
During standby 40 dB (A) or less
Dimensions (Width x Depth x Height) 78.1 in. (W) x 30 in. (D) x 44.4 in. (H) 68 in. (W) x 25.7 in. (D) x 44 in. (H)
Machine Weight 97 kg 89 kg
Packaging dimensions 87 in. (W) x 16 in. (D) x 22.40 in. (H) 81 in. (W) x 16 in. (D) x 22.40 in. (H)
Packaging weight 105 kg 97 kg
Operating environment Temperature: 15 to 30 °c (59 to 86 °F),
Humidity: 25 to 75% RH (no condensation)
Accessories USB cable, cutting pad, safe blade, dedicated stand, tweezers, user’s manual, etc.
