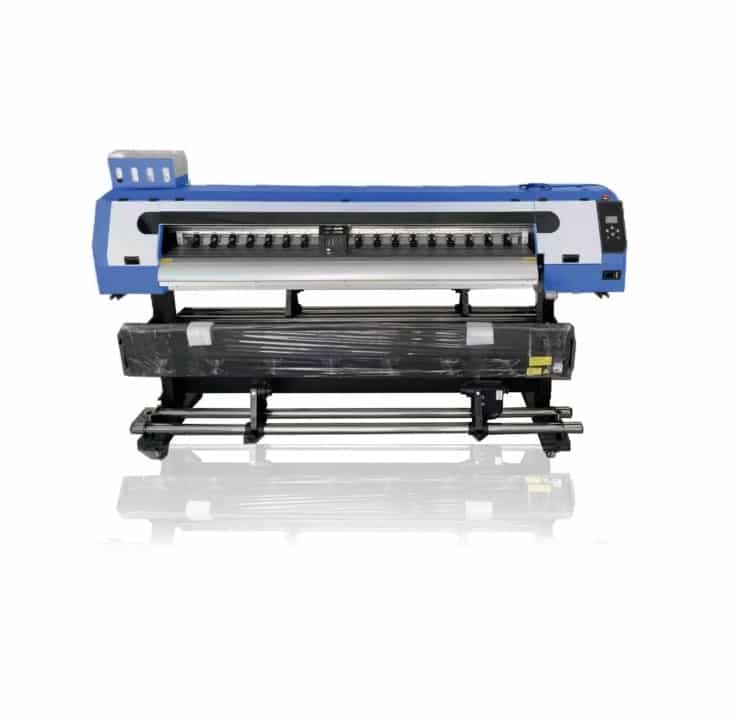

EdgePrint Spectrum-74S | 74-Inch Wide Eco-Solvent Printer
- Printing Speed: 645 square feet per hr
- Voltage: AC110V/50-60HZ
- Maximum Printing Width: 74 inches
- Ink Color: CMYK
- Printing Media: Banner, Vinyl, Canvas, Car sticker, Wallpaper, etc.
- Printing resolution: 1800dpi
Description
Introducing the high quality and Small Size Roll-to-Roll Printer, an unparalleled solution catering to both outdoor and indoor printing requirements. This cutting-edge printer boasts the ability to produce seamless edge-to-edge prints up to 74 Inches in width. Powered by the robust Industrial Grade Piezo Electric Print Heads, it ensures high-quality results.
Equipped with compatibility for Eco solvent printing Inks, this printer stands out with its well-known long-life and production-level Print Head, recognized as an industry standard for enhanced versatility.
The printer incorporates advanced CISS printing ink supply system. The precision of printing is achieved through the integration of highly precise DC Servo motors and drives & automatic cleaning system ensuring optimal performance.
Silent operation is guaranteed with premium quality Linear Rail and Guide, offering a superior printing experience.
Notably, this printer stands out for its cost-effectiveness. Supported by the most economical inks in the market, ensuring optimal production costs. Elevate your printing experience with the best-in-class technology with our Small Size Printer.
Two Years Standard Warranty & Extended Warranty Facility Available
Our machine comes with 2 years standard warranty and in addition there is a Warranty Plus+ option available to users can opt addition safety of their equipment with this feature.
Features
Specifications
| Model | EDGEPRINT – SPECTRUM-74S | ||
| Print head | Piezo electric Drop on Demand- variable droplet | ||
| Media Handling | Roll to Roll / Min 10″ & Max 74″ / 45kgs max | ||
| Maximum print width(mm) | 74inches | ||
| Printing Parameters | Print Modes | Print Speed | |
| Draft Mode | 645 sq.ft/h | ||
| Production Mode | 452 sq.ft/h | ||
| Quality Mode | 322 sq.ft/h | ||
| Photo Mode | 226 sq.ft/h | ||
| Color | CMYK | ||
| Compatible ink | Pureprint X1000 inks | ||
| Drying System | Infra-red Heaters and Drying Fans | ||
| Heating System | Multi Heating system : Pre + Post + Print Head | ||
| Printable Materials | Vinyl, Banner, Printable fabric, Perforated media, Translite, Wallpapers, Canvas, Mesh etc. | ||
| Medium Transmission | Auto media take-up system with unwinder | ||
| Operation system | Windows Operating Platforms supported | ||
| RIP software | RIP Software with ICC Profiles | ||
| Interface | High Speed Ethernet cable & USB 2.0 | ||
| Packing specification | 3113.7 in. x 29.5 in. x 55.8 in. (2,886 mm × 748 mm × 1,415 mm) | ||
| Power requirements | AC110V 50/60HZ / Single Phase | ||
| Working environments | Temperature: 15-30℃ Humidity: 40-60% | ||
Applications
MARKET APPLICATIONS
Expand your Capabilities with the ownership of Highly Quality & Limitless Eco-solvent Printer ever.
Supplies
SUPPLIES
| Category | Item | Description |
|---|---|---|
 | Pureprint X1000 | Printing inks |
| Pureprint X1000 | Cleaning flush | |
 | Cleaning Sticks | Print head surround cleaning sticks |
 | Cleaning wipes | Soft cleaning wipe clothes |
 | Wiper blade | Head wiper blade |
