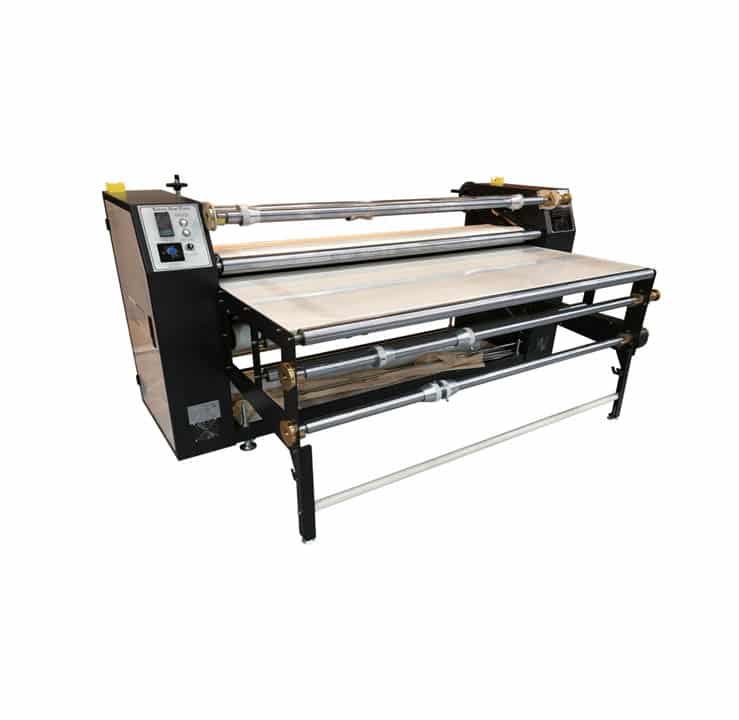

| Model | EdgePrint PD1600 – Roll to Roll Heat Transfer Machine |
| Machine Structure | Metal body & Heavy steel main frame |
| Machine chassis | Body:3mm thickness steel plate & Legs:2mm Steel Plate |
| Rollers Pressure Control | Electric Motor & Pneumatic Pressure Controlled |
| Rollers Diameter | 260mm |
| Heating Power | 1500 Watt |
| Speed Controls | Variable Control |
| Motor Power | 400 watt |
| Media Loading Tension System | Heavy Duty Chain Movement |
| Acceptable Materials | All roll format Polyester & Transferrable materials |
| Working Table Size | 25.6″ |
| Media Width | 63″ |
| Heating System | Oil Heating |
| Total Load | 11Kw |
| Voltage | AC380V (±10%) 50Hz/60Hz, 3phase |
| Working Environment | Temperature 20-28℃ Humidity 40-70% |
| Packaging Size & Wight | 112 x 34 x 56 in |
| Machine Size & Weight | 96.5 x 29 x 52 in |
| Machine Weight | Machine 1000kgs | Packing 1200kgs |
