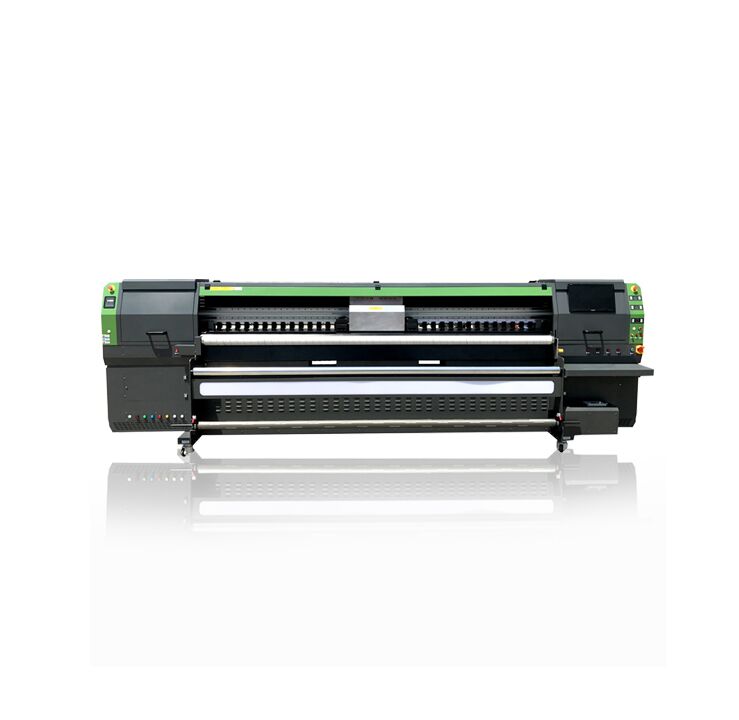

EdgePrint Thunderstorm G5RTR- 126-Inch Professional LED UV Roll-to-Roll Printer

  • Printing Speed: 120 square meters
  • Voltage: AC220V/50-60HZ
  • Maximum Printing Size: 2500mm x 1300mm
  • Ink Color: CMYK
  • Printing Media: any flat & rigid surface like Acrylic, Tiles, SS, Glass, Marble, Wood etc.
  • Printing resolution(dpi): 2880dpi
  • RIP software: Photoprint

Presenting the epitome of stability and versatility in automatic UV flatbed printing, our system is powered by the industry-leading Ricoh Gen5 Print Heads. Renowned for their stability and industrial-grade quality, these print heads guarantee a chemical reaction-free environment with the ink, ensuring optimal performance and longevity.

Equipped with an anti-collision system, our printer prioritizes the safety of the Ricoh Gen5 Print Heads. This innovative feature safeguards the print heads from damages caused by human errors and material deformations, thus extending the overall lifespan.

To ensure a continuous and clogging-free printing experience, our system incorporates the best quality negative pressure system for ink supply. This technology ensures an uninterrupted workflow, contributing to enhanced efficiency.

Adding to its versatility, our printer features a customized color profiling system with ICC color profiles. This enables the production of the best color gamut for various surfaces, ensuring that every print meets the highest standards in terms of color accuracy and vibrancy.

In summary, our automatic UV flatbed printer stands out for its stability, versatility, and advanced features, making it the ideal choice for those seeking a reliable and high-performance solution for a wide range of printing applications.

Category:

Description

Model EDGEPRINT RTR G5UV
Print head Ricoh Gen5 Head
Printing Speed (Without W & V) Maximum Speed 6 Print Heads: 1210 ft2/hr (113 m2/hr)

4 Print Heads:   650 ft2/hr (60 m2/hr)





Production Speed 6 Print Heads: 350 ft2/hr (33 m2/hr)

4 Print Heads: 240 ft2/hr (22 m2/hr)

Quality Speed 6 Print Heads:  265 ft2/hr (25 m2/hr)

4 Print Heads:  165 ft2/hr (15 m2/hr)

Roll Support width Up to 131” wide (3.3m wide)
Maximum Print width 126” (320 cm)
Ink type UV Curable Ink
Color C M Y K + White + varnish
Maximum Thickness 1 mm
Print Media Banners, Vinyl, Papers, Fabrics, Backlit Fabric etc.
Curing System LED UV water cooled curing system
Software Maintop/ Photo print/ Caldera/(Optional)
Interface USB Connectivity
Voltage 208 – 220 VAC 50/60 Hz 30A, Single Phase, Single Plug
Working Environment Temperature 20-28℃ Humidity 40-70%
Assembled Machine Size (L x W x H) 218”x 40”x 67” (554 x 100 x 169 cm)
Shipping Packing Size (L x W x H) 226”x44”x76” (572 x 110 x 192 cm)
Shipping Weight 3748 lbs (1700 Kg)
Assembled Weight 2866 lbs (1300 Kg)
