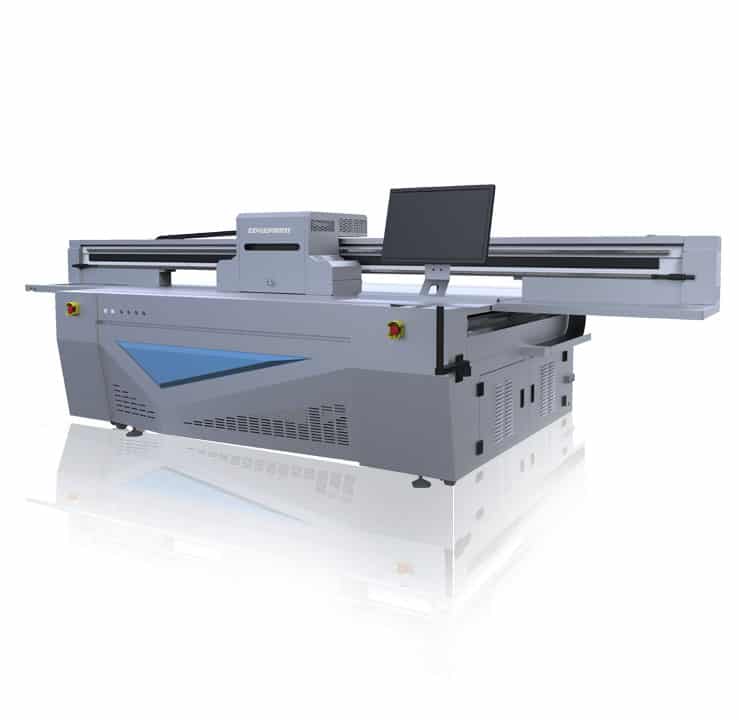

EdgePrint Thunderstorm G6- 8×4-ft Professional Led UV Printer

• Printing Speed: 1560 square feet
• Voltage: AC220V/50-60HZ
• Maximum Printing Size: 2500mm x 1300mm
• Ink Color: CMYK (W+V)/CMYK+CMYK/CMYL+LC+Lm+W+V
• Printing Media: any flat & rigid surface like Acrylic, Tiles, SS, Glass, Marble, Wood etc.
• Printing Resolution(dpi): 2880dpi
• RIP software: PhotoPrint with custom ICC Profiles

Presenting  stability and versatility in automatic UV flatbed printing, our system is powered by the industry-leading Ricoh Gen6 Print Heads. well known high productivity and higher quality uv printer.

Using Ricoh Gen6 MH5320 Print head from Japanese. With active Nozzles 1280 nozzles per head, which can print 2 colours in one Head. Quality Dropet Size of 5pl print drop size. This MH5320 print is compatible with water based, UV and solvent inks.

Equipped with an anti-collision system : Safety first is on always Top while making any equipment.to make sure the safety of Machine user, printing material and Print heads, we use high quality sensors for anti collision system, which instantly responds by stopping machine immediately.

TKH Japanese Linear guide & LM blocks : Most robust, silent and maintenance free Rail system. which makes sure no vibrations and smoothest carriage movements while printing. it ensures the perfect quality by putting print drops at desired location which results no grain printing on any surfaces.

Igus high quality and long life cabling : IGUS is a Well Known Long Life and Maintenance free Cables in word. Most Flexible with PVC jacket to make it more smoothest move in E-chain or Drag Chain carrier.

Pall USA Ink filters : Using Best and well known American Paul ink Filters Polypropylene 5 micron ink filters for best filtrations.

New Maglev Technology : Using magnetic Maglev, is can handle High Speed, More Precise, Distortion Free, Vibration Free, no ware and tare.

Highly precise Vacuum print bed table : HAXCORE vacuum table are widely used in UV flatbed printer, digital cutter and screen printing industry. These are Highly Stable and Precise Aluminum Vacuum Table for UV printer, with Aluminum Skin, Edge Closer. Lighter in weight and hard anodized for make it heavier in strength with  honeycomb core used inside, safeguarded with antistatic feature

Fuji (Japanese) Servo Drives & Motors : High Speed, high Flexibility, Low Noise and Low Vibrations Knitted or Woven substrate and Antistatic.

LED UV curing Lamps :Air Cooled LED better Curing, More Stable, Less Power consumption than conventional lamps, long lifespan and Almost no maintenance required.

Dual Negative pressure system : Stainless Steel Negative Tank and Aluminium Ink Tanks for Longest lifespan and zero maintenance cost, Highly UV secured main Tank  and Alloy aluminum based sub tanks to make it lighter in weight and stronger in hold and longer in lifespan. Using Dual Negative System to keep a constant pressure & non stop  working ability of White inks.

Photoprint RIP Software : PhotoPrint RIP Software UV Special EditionBest known for Fast & Best Color RIP Engine, Supports full user control for various print media & Color Corrections. Separate for  Spot Color & Saturated Images.

ICC Profiles : ICC Color Profile is the key of color corrections & getting  best color gamut, have real time ICC profiles make realistic and real life colors and matches 100% to the Pantone charts, Have a very expensive RIP software, Expensive Inks & Hight Budget Printers without ICC Profiles seems no value for spending money, Only ICC profile makes the printer feasible to get best print gamut.
