THUNDERSTORM-TS FB5000R UV Flatbed Printer
- Printing Speed: 320~1200 square feet
- Voltage: AC220V/50-60HZ
- Maximum Printing Size: 2500mm x 1300mm
- Ink Color: CMYK (W+V)/CMYK+CMYK/CMYL+LC+Lm+W+V
- Printing Media: any flat & rigid surface like Acrylic, Tiles, SS, Glass, Marble, Wood etc.
- Printing Resolution(dpi): 2880dpi
- RIP software: PhotoPrint with custom ICC Profiles
This product has been added to 4 people'scarts.
- Pick up at a edgeprint.ca collection point is possible
- Shipping
- 24 x 7 Customer Support
Description

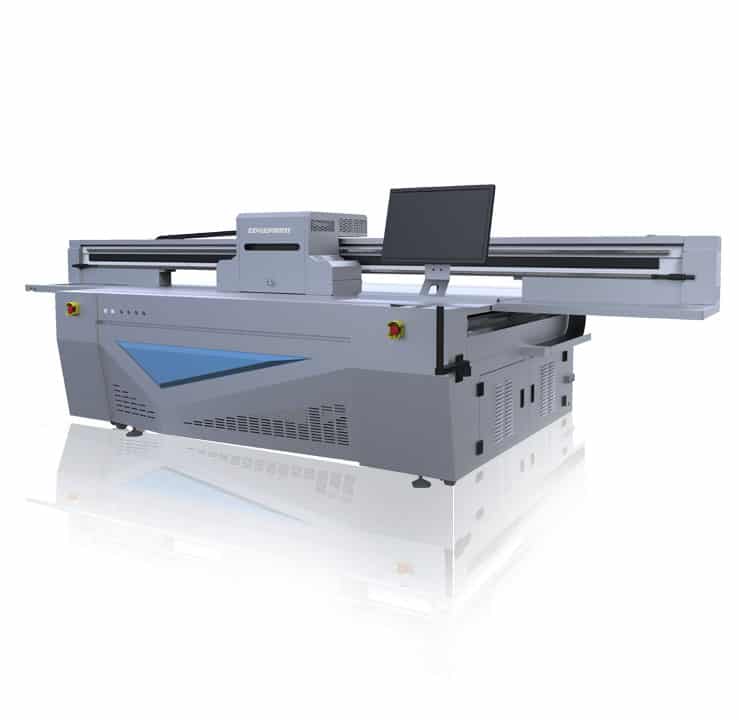

EdgePrint Thunderstorm TS FB5000R is a high-performance professional LED UV flatbed printer designed for high-quality printing on a wide range of flat and rigid materials. With printing speeds of 320–1200 square feet and a maximum printing size of 2500 × 1300 mm, it provides flexible and productive performance for demanding printing applications.
Powered by advanced Ricoh Gen6 MH5320 printheads, the printer delivers precise and detailed output with a 5 pl droplet size and high productivity. Its anti-collision system helps protect the printheads, machine, and printing materials during operation.
The printer features THK Japanese linear guides, Fuji servo drives and motors, Maglev technology, and a precision HAXCORE vacuum print bed for smooth, stable, accurate, and vibration-free printing. Air-cooled LED UV curing lamps provide efficient curing with lower power consumption and long service life.
The dual negative pressure system supports stable ink delivery, including continuous white ink operation. With Pall USA 5-micron ink filters, Photoprint RIP software, and custom ICC profiles, the printer delivers excellent filtration, color accuracy, and wide color gamut.
It supports CMYK, White, and Varnish configurations and prints on acrylic, tiles, stainless steel, glass, marble, wood, and other rigid surfaces.
| Model | EDGEPRINT G6UV | ||
| Print Head | Ricoh Gen6 | 4 Head CMYK | 8 Heads CMYK + CMYK |
| Printing Speed (Without White & Varnish) | 4 Pass | 753 sq.ft/h | 1560 sq.ft/h |
| 6 Pass | 430 sq.ft/h | 861 sq.ft/h | |
| 8 Pass | 322 sq.ft/h | 645 sq.ft/h | |
| 12 Pass | 161 sq.ft/h | 344 sq.ft/h | |
| Printing Width | 2500 × 1300mm | ||
| Ink Type | UV Curable Ink | ||
| Color | C M Y K + White + Varnish / C M Y K + Lc + Lm + White + Varnish / C M Y K + C M Y K | ||
| Maximum Thickness | 125 mm | ||
| Print Media | PVC Boards, Tiles, Glass, Signboards, Mobile Cases, Wood etc. | ||
| Curing System | LED UV Water Cooled Curing System | ||
| Software | Photo Print (Caldera / Onyx – Optional) | ||
| Interface | USB Connectivity | ||
| Voltage | 208–220 VAC 50/60 Hz 30A, Single Phase, Single Plug | ||
| Working Environment | Temperature: 20–28℃ Humidity: 40–70% | ||
| Assembled Machine Size | (L × W × H) 180″ × 80″ × 60″ (458 × 205 × 153 cm) | ||
| Shipping Packing Size | (L × W × H) 209″ × 90″ × 75″ (531 × 230 × 191 cm) | ||
| Shipping Weight | 3422 lb (1552 Kg) | ||
| Assembled Weight | 2650 lb (1202 Kg) |
